Advanced safety solution with conical stud design that reduces unauthorised track access by up to 78% while enhancing rail network security.
Indovia’s anti-trespass panels use a specialised conical-stud design that delivers stronger deterrence while cutting installation time compared to traditional security measures.
Made from 100% recycled rubber, Indovia panels offer an environmentally responsible railway-safety solution while delivering proven performance in reducing unauthorised track access.**
Three specialised Indovia panel variants—approved by Network Rail—ensure full compliance and reliable performance across a wide range of railway infrastructure needs.**
An observed reduction of up to 78% in trespassing incidents greatly enhances network safety and strengthens overall passenger security.

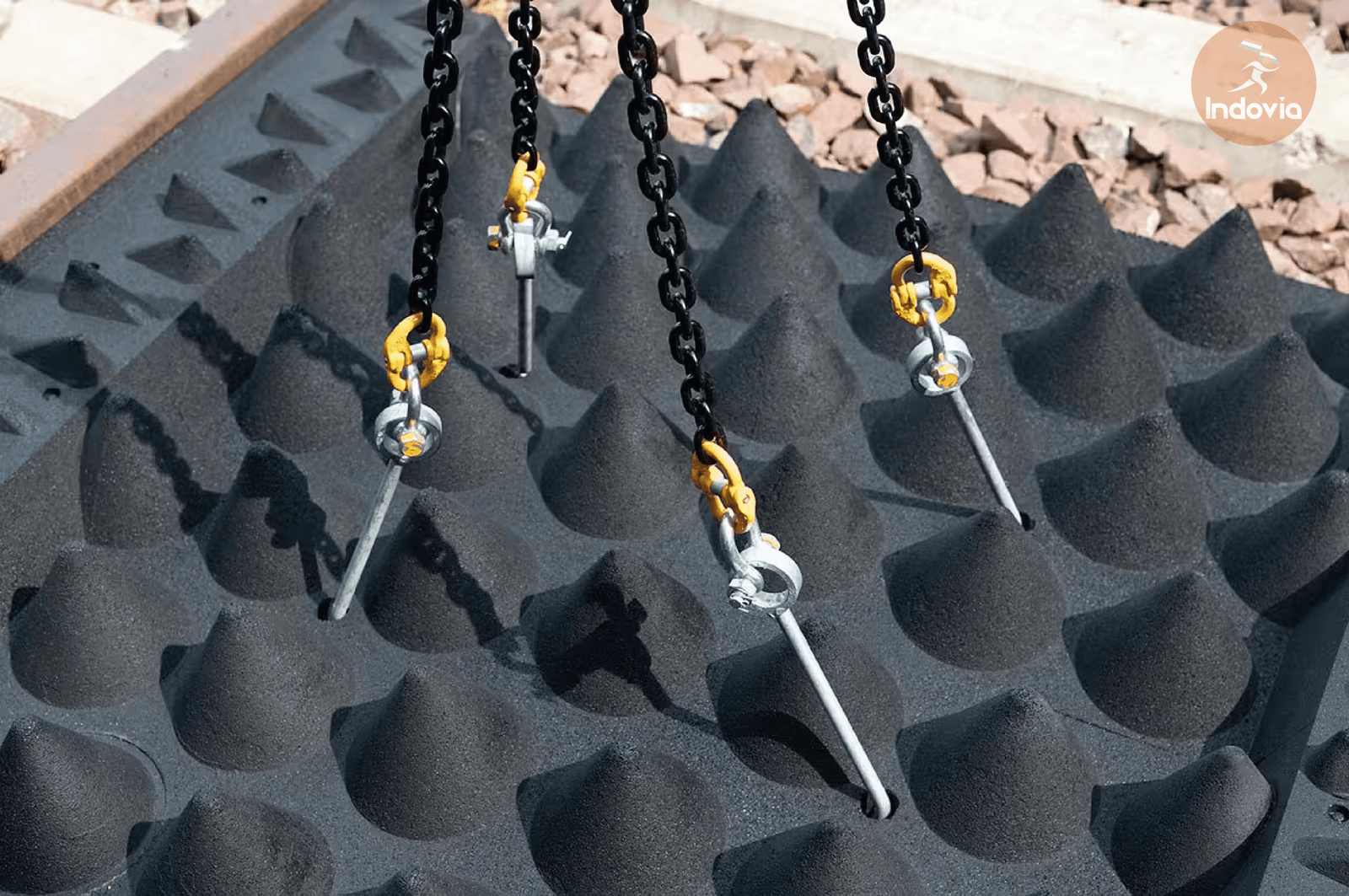

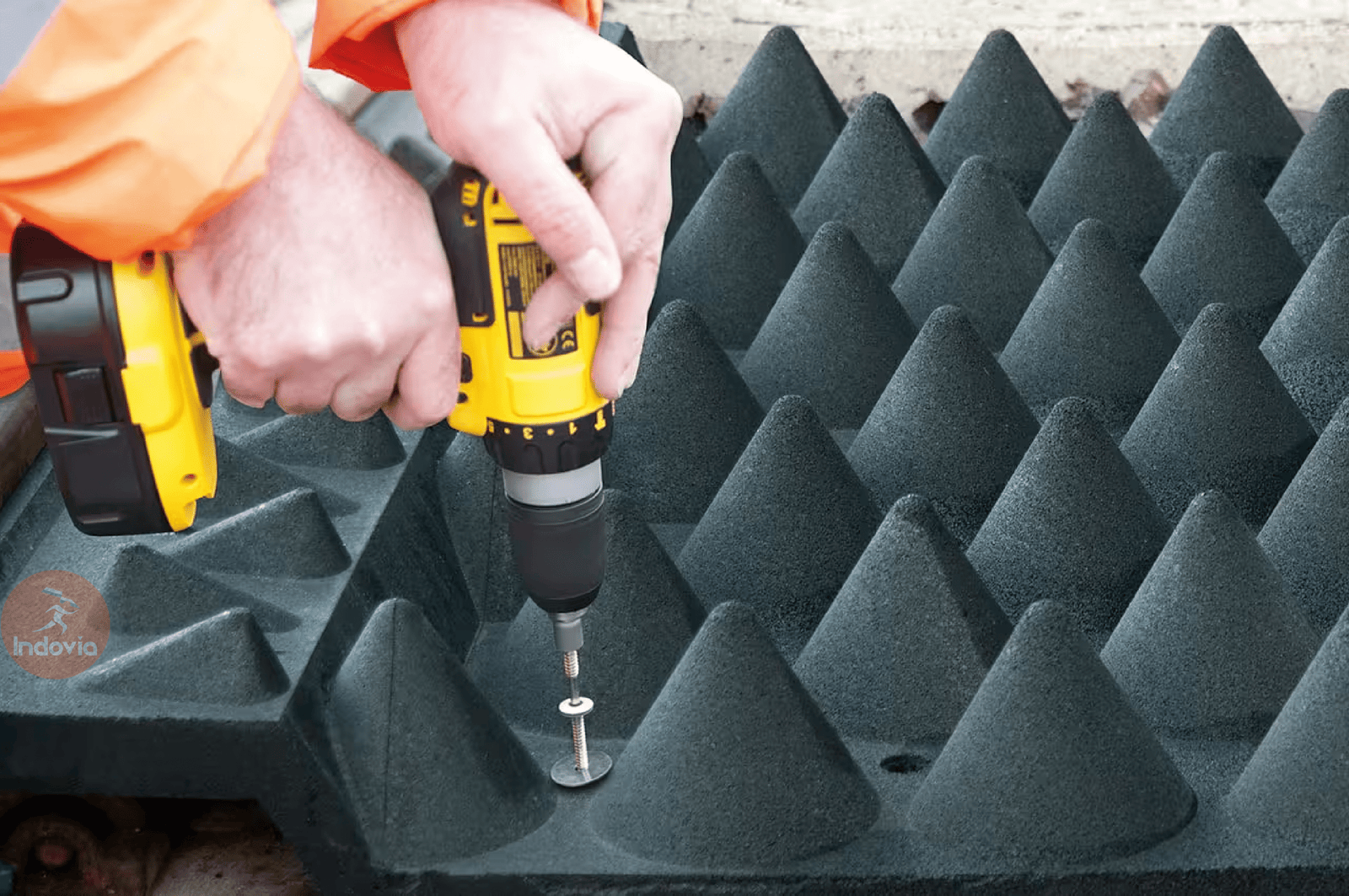

Installation time and labour costs are significantly reduced, thanks to a complete fixing kit supplied—no special tools needed.
Three approved Indovia panel variations guarantee compliance and optimal performance across diverse railway infrastructure requirements..
Crafted from 100% recycled rubber, Indovia panels deliver an environmentally responsible safety solution.
Its self-draining design prevents water buildup, minimizing maintenance needs over time.
Reduced track possession time and streamlined maintenance lower the overall cost of ownership.
Indovia Anti-Trespass Panels are designed to deliver maximum deterrence while ensuring easy installation and environmental sustainability. Their modular design allows flexible deployment across diverse railway environments.
Each Indovia panel incorporates a conical stud design for superior deterrence and is made from 100% recycled rubber, featuring a self-draining configuration to reduce maintenance needs.
| Anti-Trespass Panel Specifications | |
|---|---|
| Design Type | Conical stud design |
| Construction | Modular construction system |
| Material Composition | 100% recycled rubber |
| Approval Status | Network Rail approved design |
| Fixing Kit | Complete fixing kit supplied |
| Drainage | Self-draining configuration |
| Panel Variations | Double flange, single flange, flangeless |
| Standard Dimensions | ~1485mm × 1300mm × 147mm |
| Weight Range | 98kg - 116kg (varies by type) |

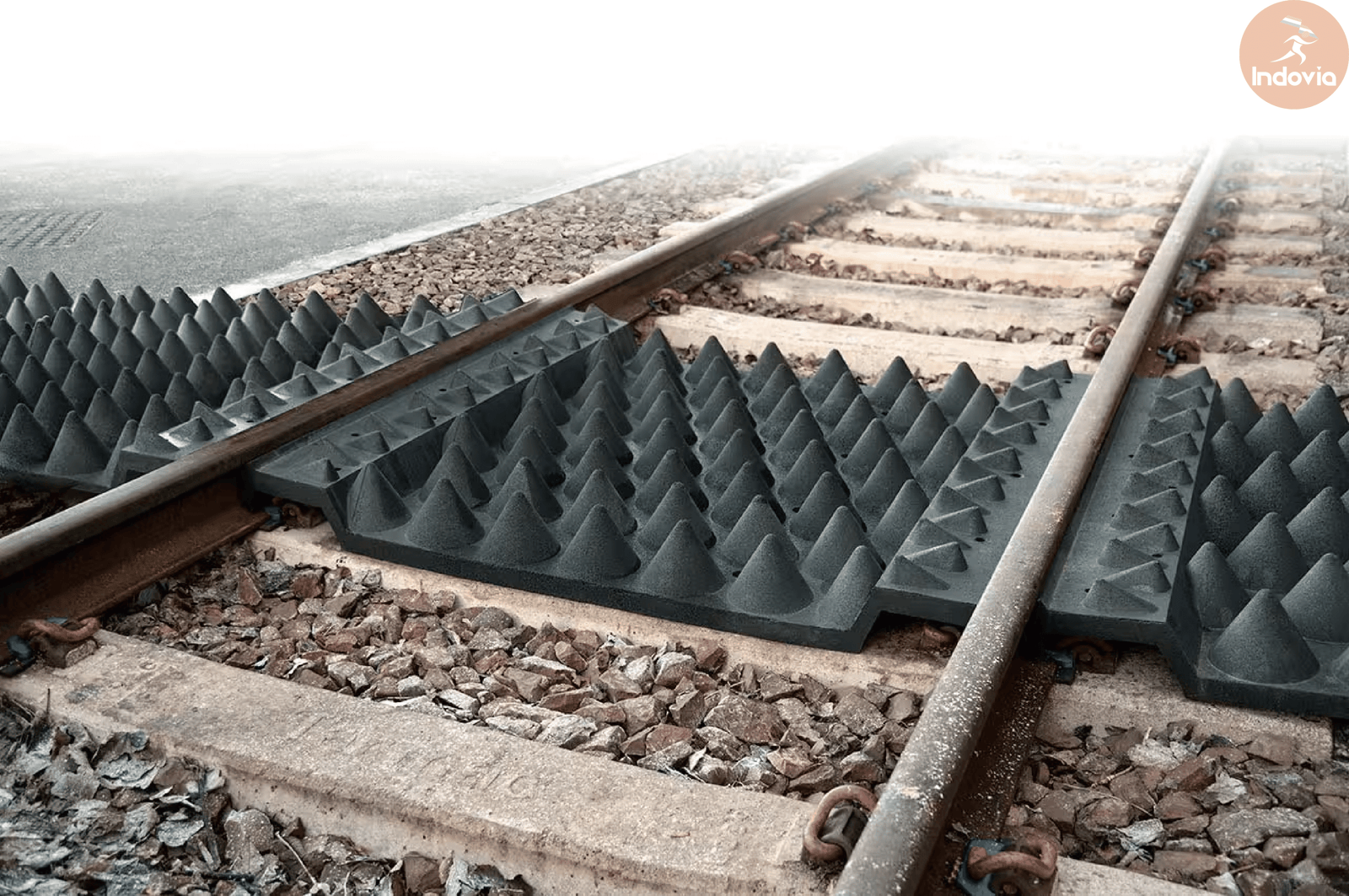

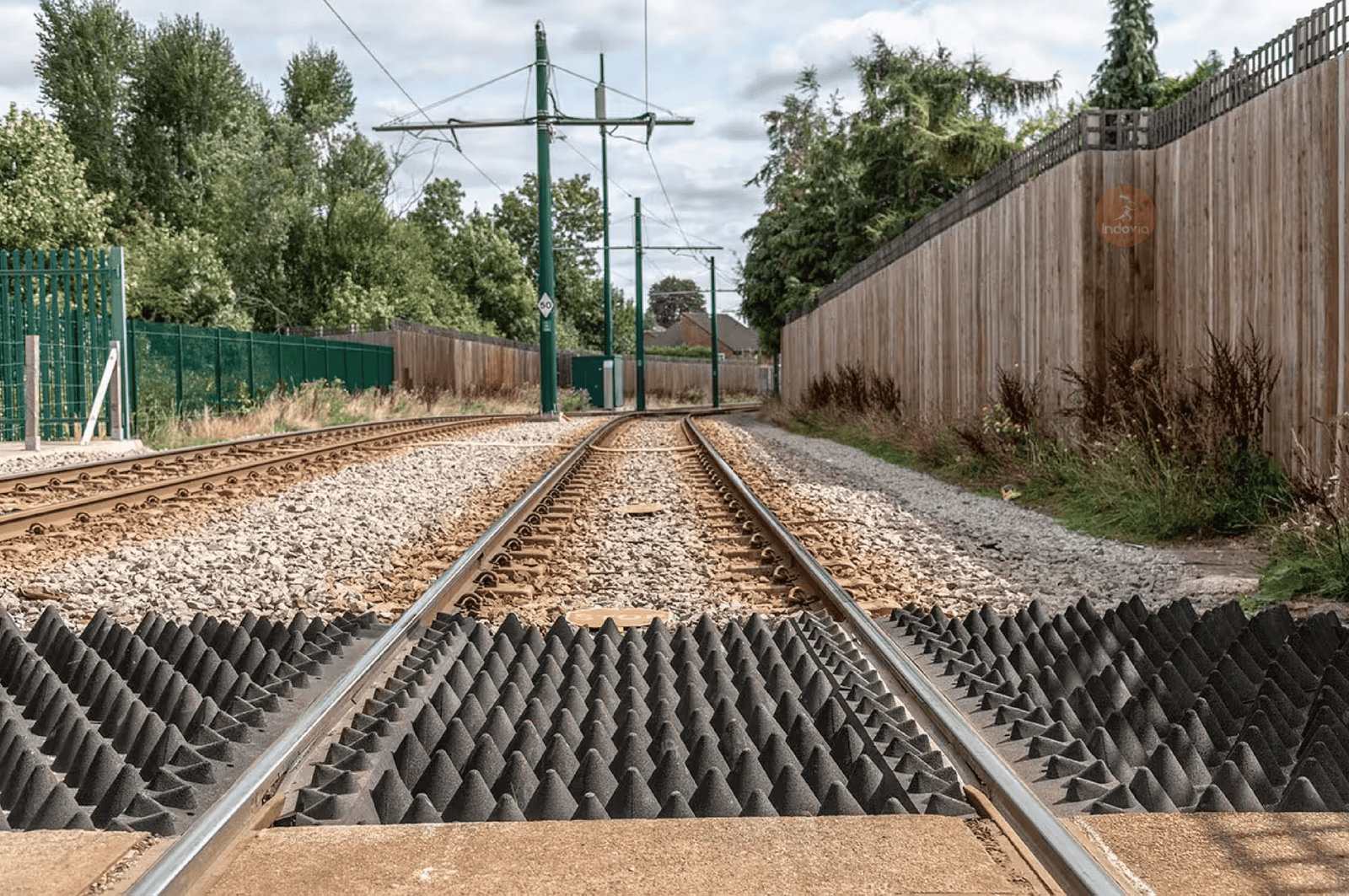

Indovia double-flange panels deliver complete security coverage for four-foot gauge track configurations..
Indovia single-flange panels are optimised for outside four-foot applications, ideal for areas with space constraints.

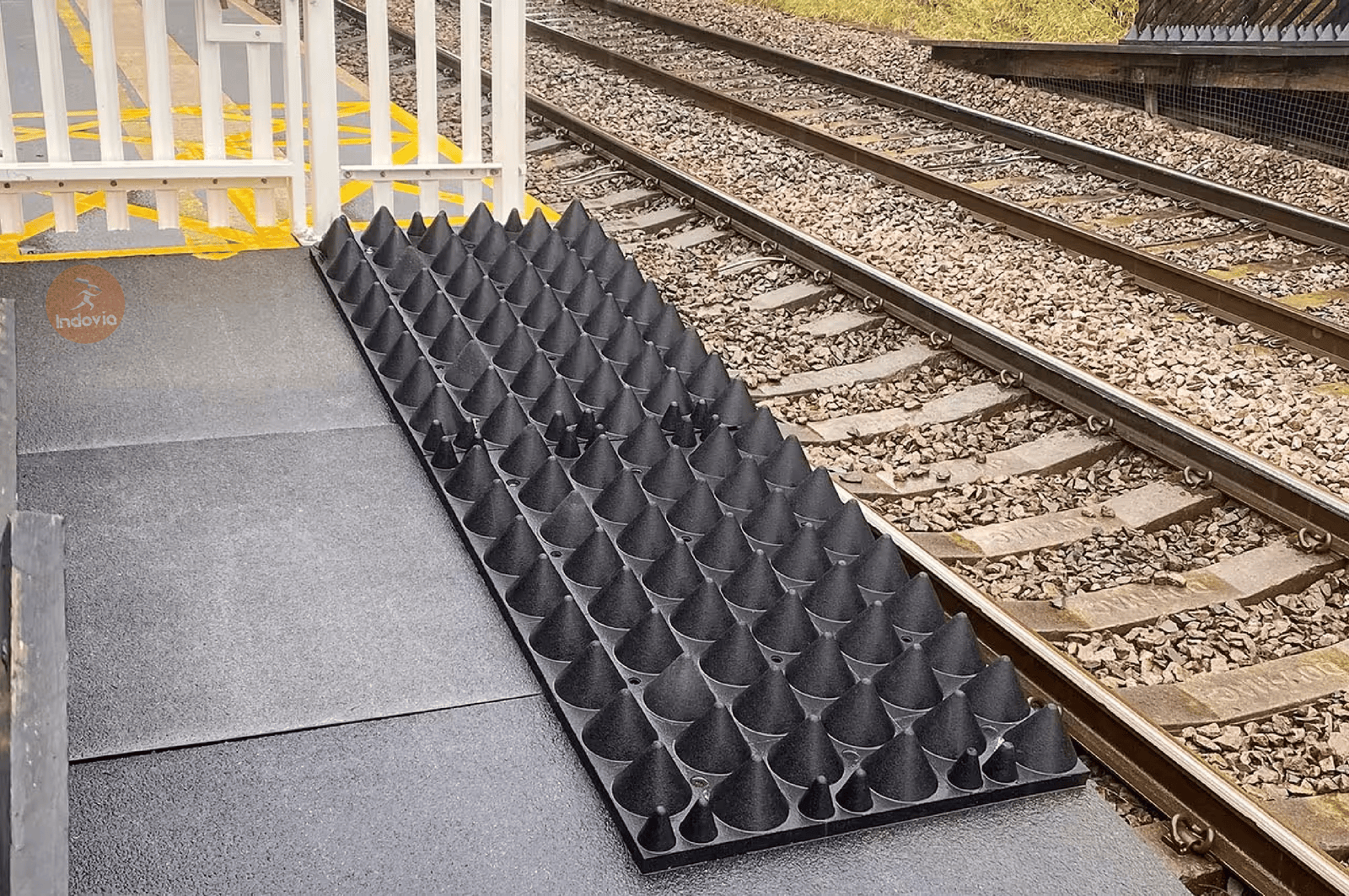

Indovia full-width flangeless panels are specifically designed to enhance platform-end security and ensure passenger safety.

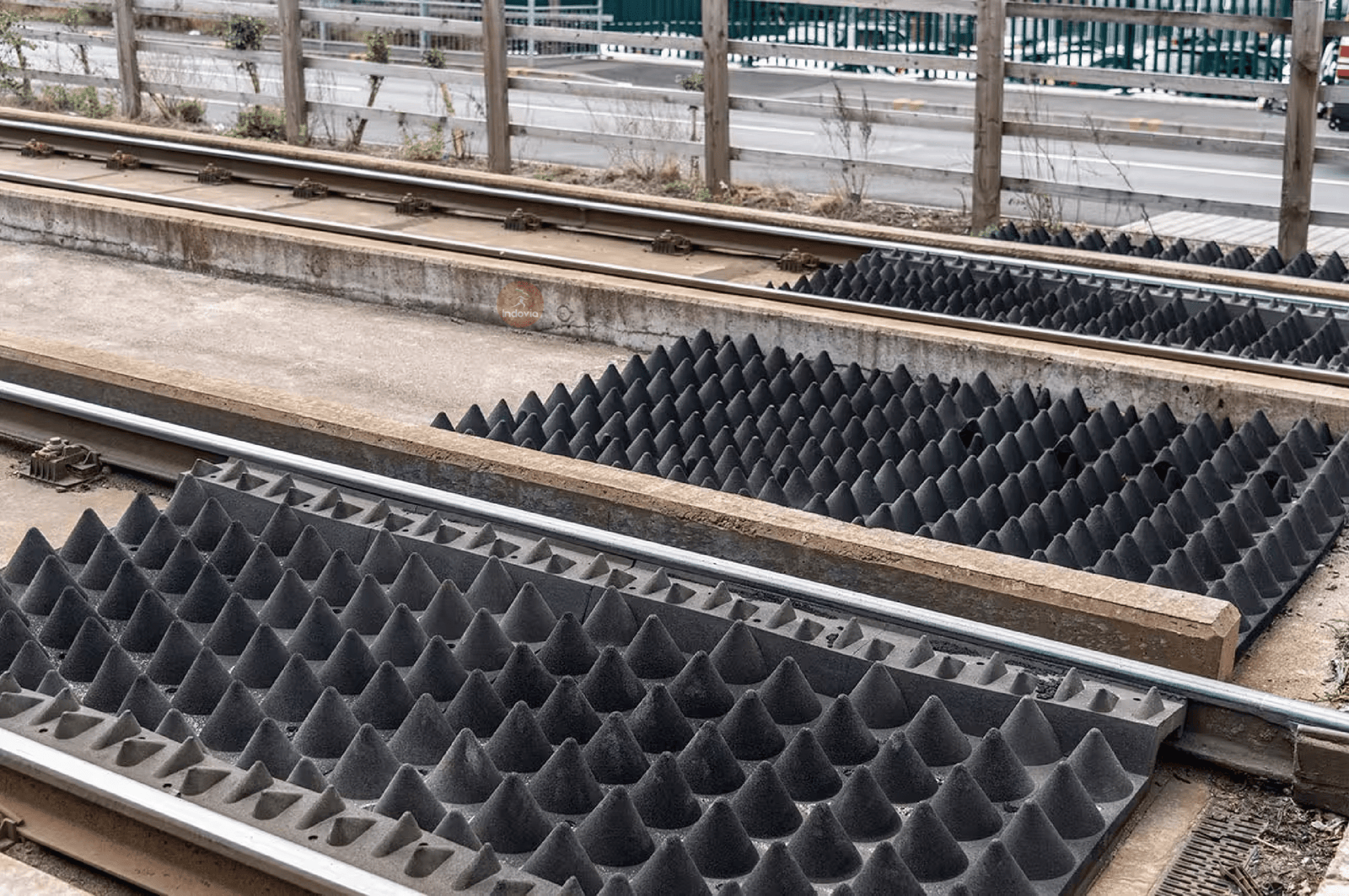

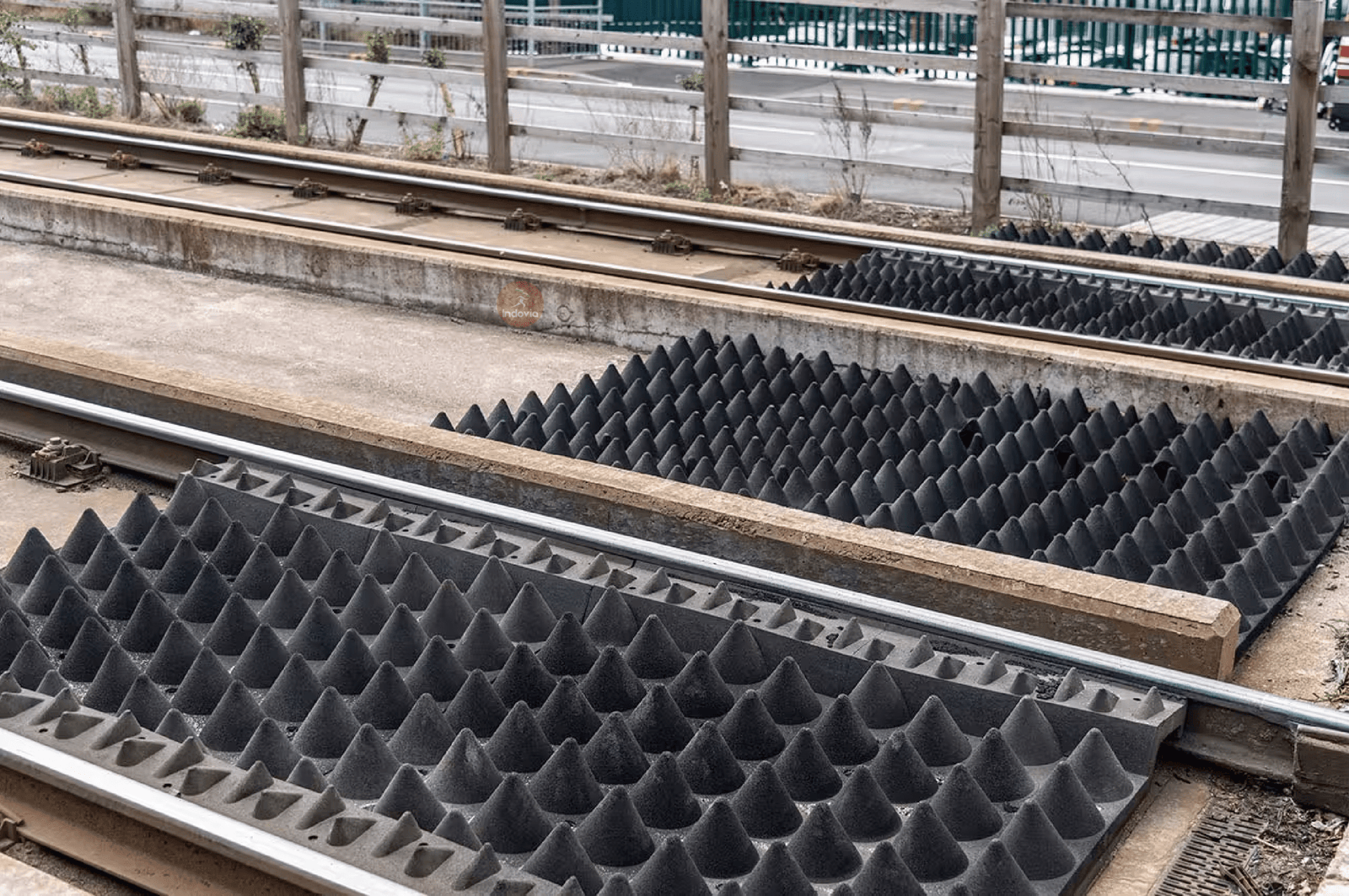

Indovia panels have proven effective across light rail, metro, and heavy rail networks, providing comprehensive trespass prevention.
Discover how Indovia Anti-Trespass Panels can cut unauthorised access by up to 78%, delivering environmentally sustainable rail safety solutions.
